Vermon Group is composed by :
Vermon
Since our inception, Vermon Group has redefined the boundaries of innovation and precision in the ultrasound transducer industry. Our heritage is built upon a pioneering spirit, making us a trusted partner to startups, large industrial groups, and research labs worldwide.
Incorporated in
0
Privately owned by doliam holding. independant AT
0
%
Arrays / Year produced
0
Worldwide team of professionals
0

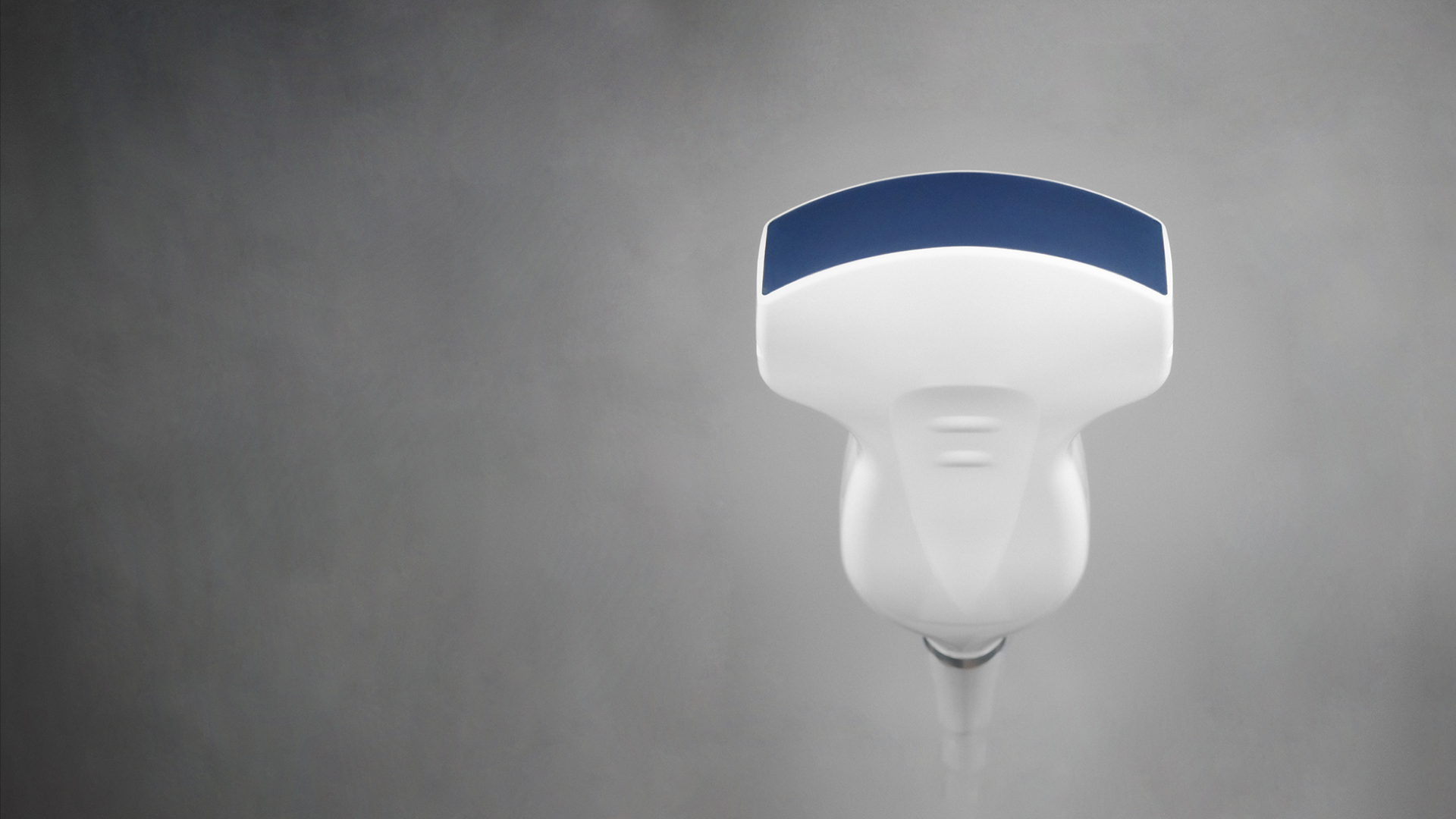

Medical Products
In medical sector, our high-resolution imaging solutions empower precise, specific and sensitive diagnosis.
- Radiology
- Cardio-Vascular
- Gynecology
- Interventional Surgery
- MSK
- Obstetrics
- Research
- Urology

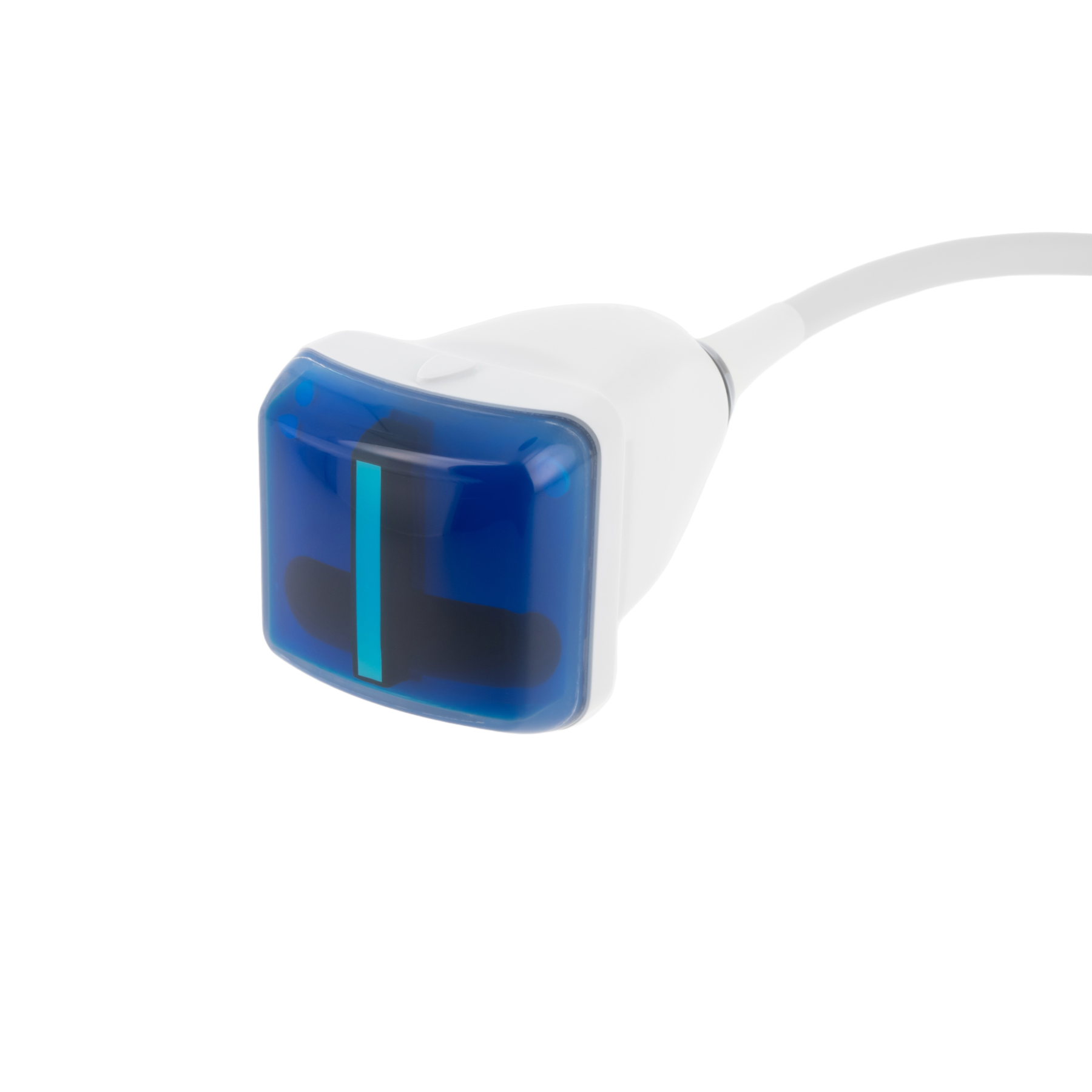

Linear Array 3D Wobble – 8.5MHz – 128 elts
LA 8.5/128-4D
-
Center Frequency 8.5
-
Number of elements : 128
-
Pitch 0.3
-
Radius of curvature N/A
-
Transverse aperture H 5
-
Focal Depth 24

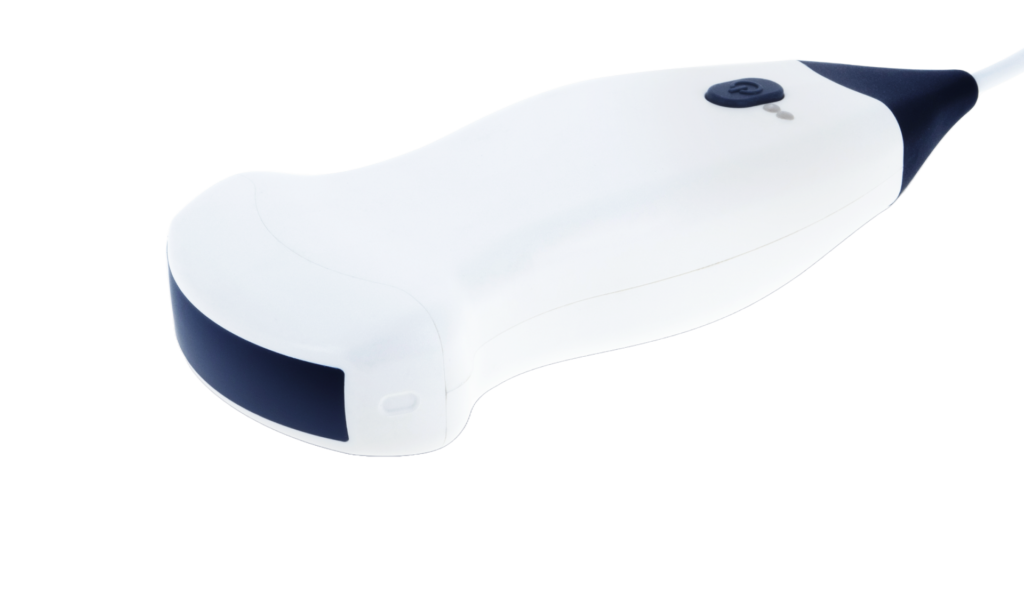

Microconvex Array – 6.5MHz – 128 elts
CLA 6.5/R20/128-Microconvex
-
Center Frequency 6.5
-
Number of elements : 128
-
Pitch 0.216
-
Radius of curvature 20
-
Transverse aperture H 6
-
Focal Depth 35

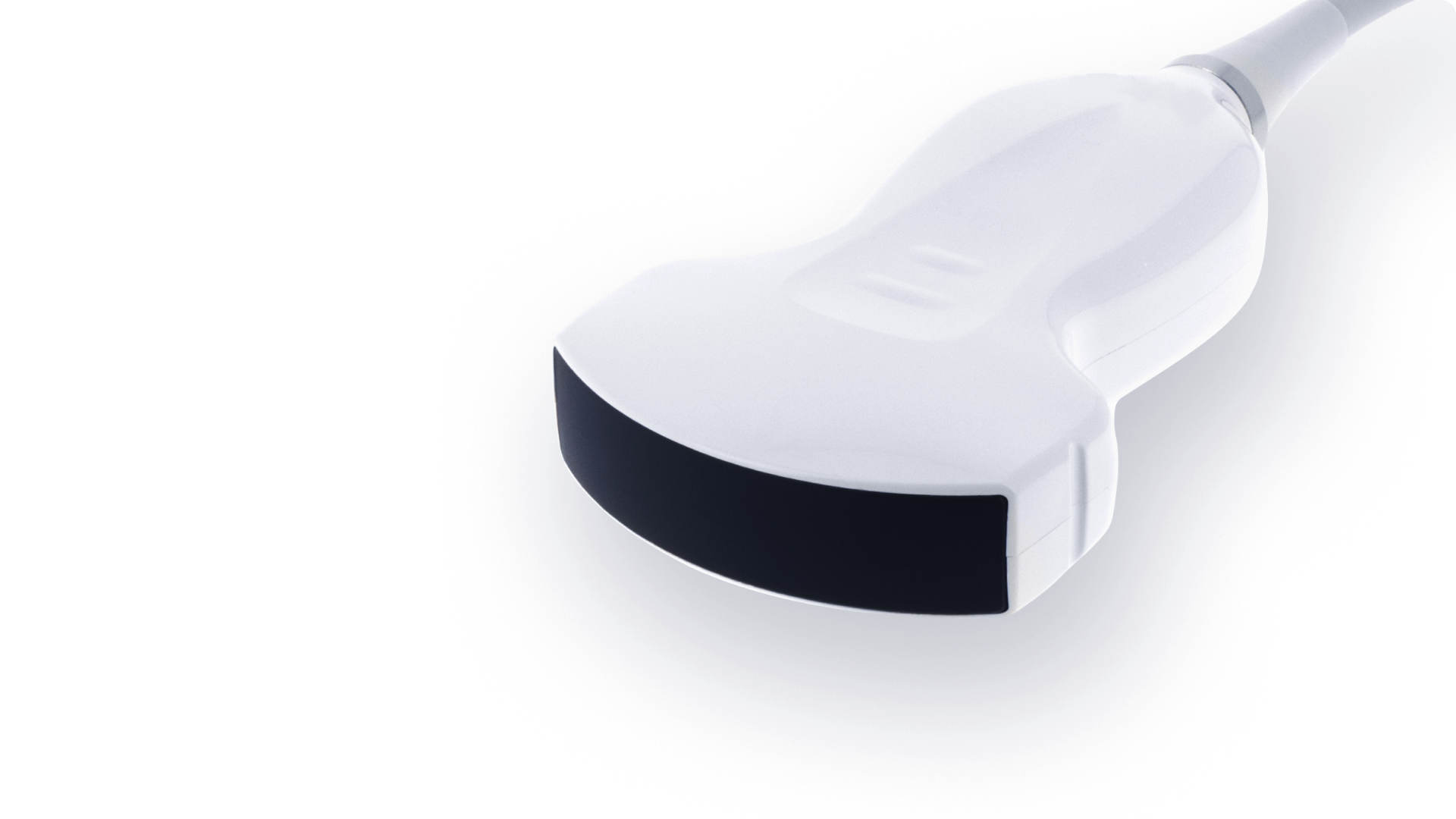

Curved Array – 3.5MHz – 192 elts
CLA 3.5/R60/192-SiX
-
Center Frequency 3.5
-
Number of elements : 192
-
Pitch 0.332
-
Radius of curvature 60
-
Transverse aperture H 11
-
Focal Depth 65

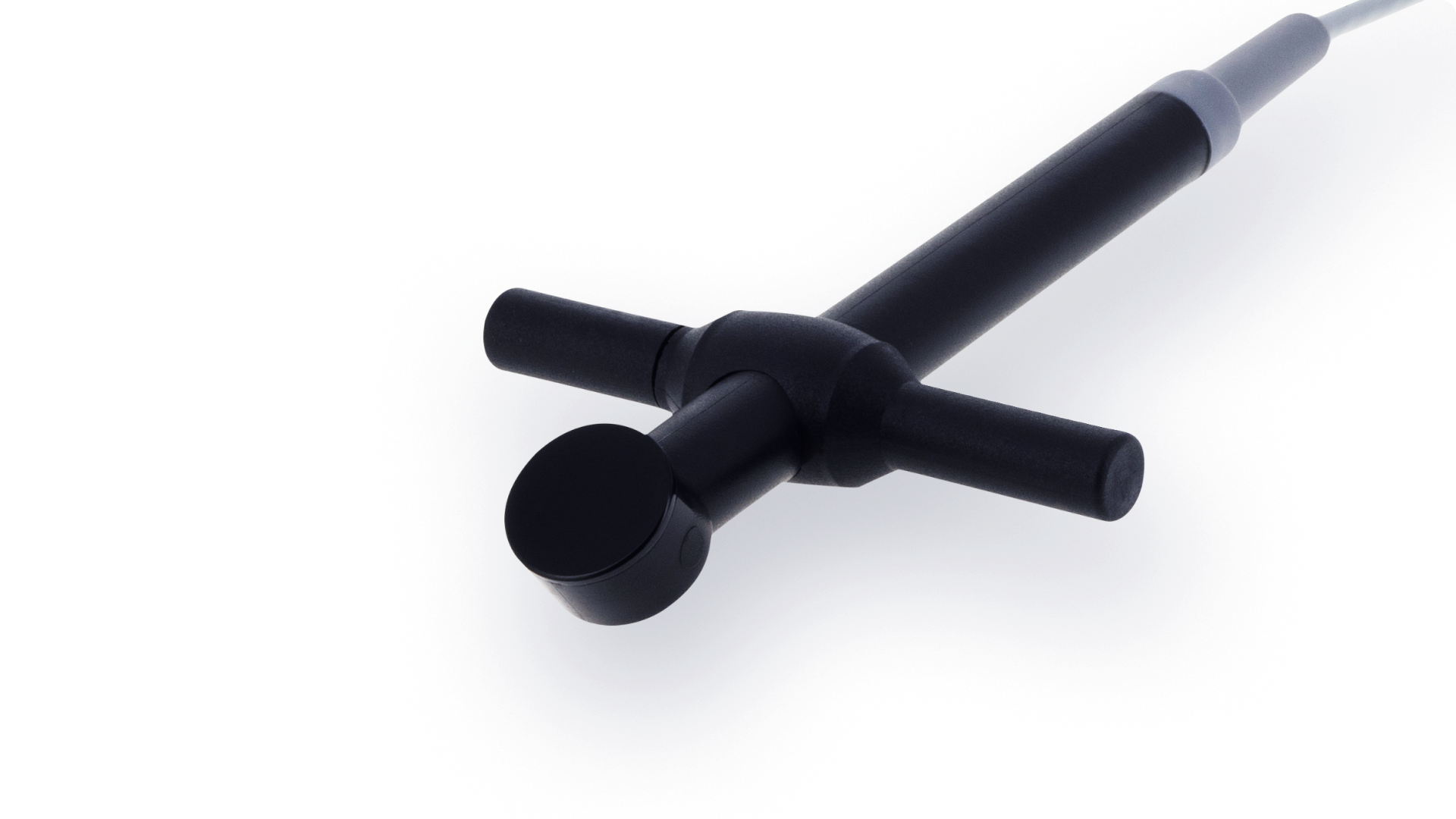

CW Doppler Pencil – 2.0MHz – 2×0.5 elts
MSD 2.0/1
-
Center Frequency 2.0
-
Number elements 2x0.5
-
Pitch N/A
-
Radius curvature N/A
-
Transverse aperture N/A
-
Focal Depth N/A

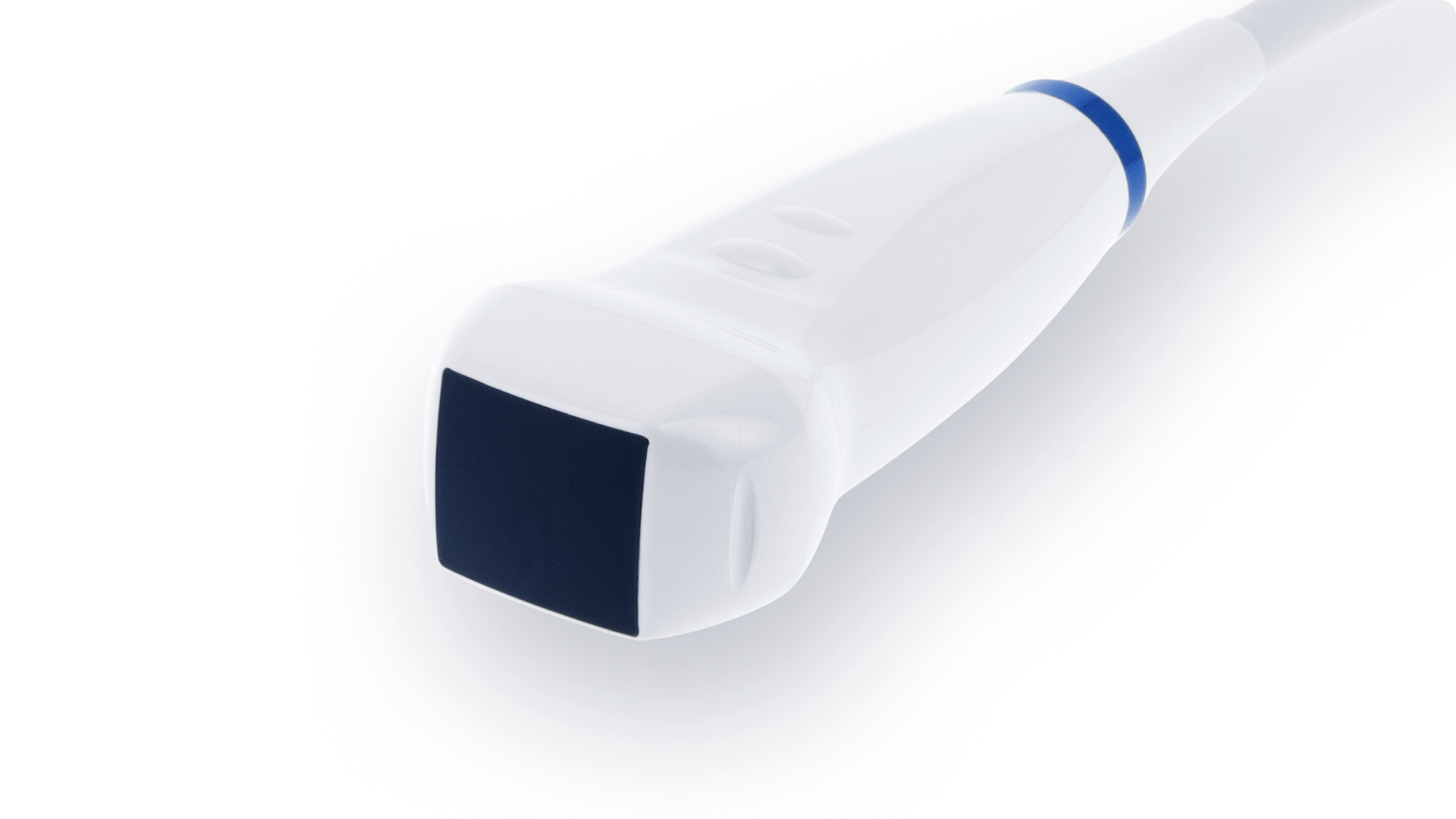

Phased Array – 5.0MHz – 64 elts
PA 5.0/64
-
Center Frequency 5.0
-
Number elements 64
-
Pitch 0.15
-
Radius curvature N/A
-
Transverse aperture 8
-
Focal Depth 50
Phased Array – 3.2MHz – 64 elts
PA 3.2/64-SiX
-
Center Frequency 3.2
-
Number elements 64
-
Pitch 0.24
-
Radius curvature N/A
-
Transverse aperture 12
-
Focal Depth 80

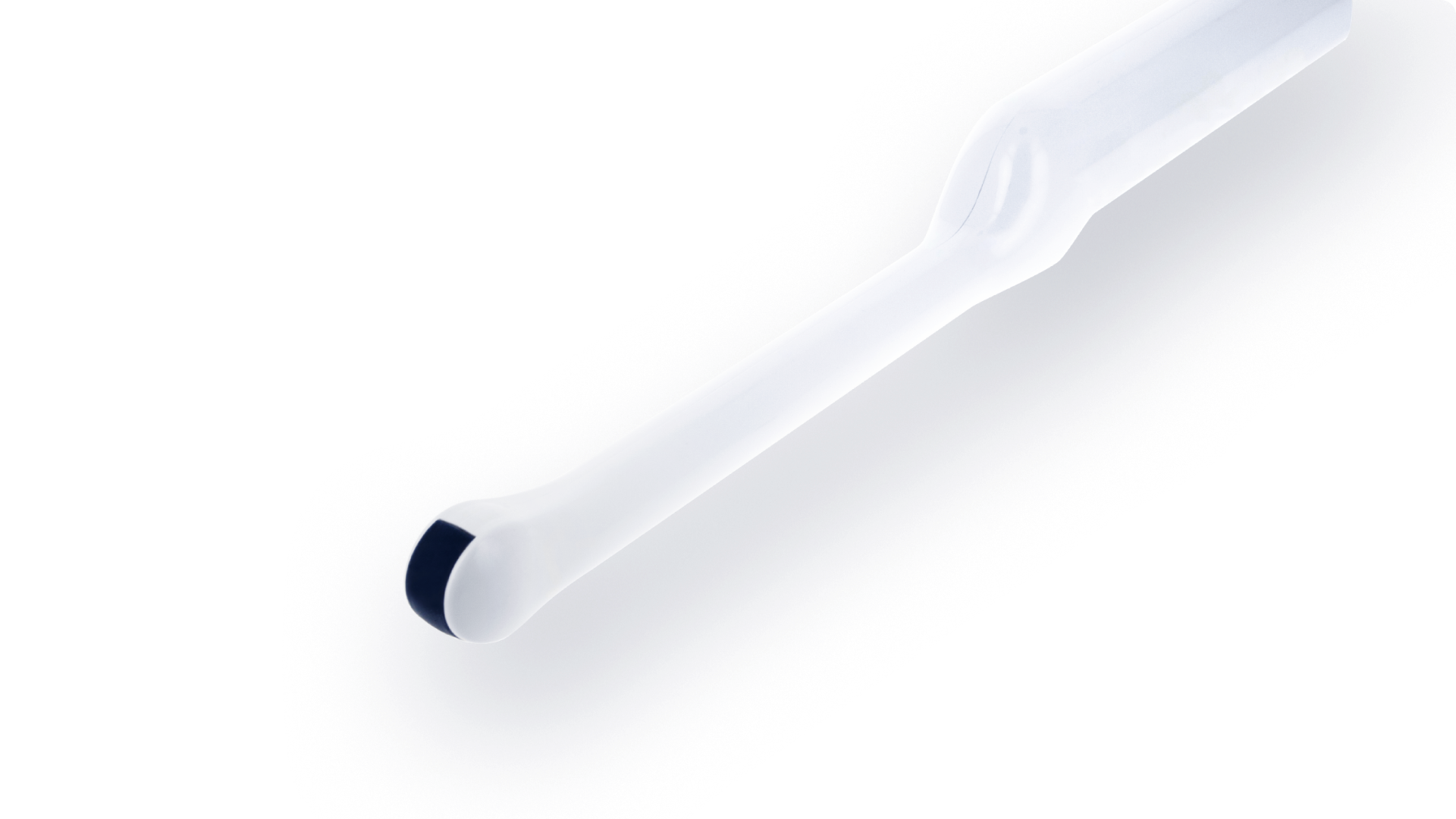

Endocavity Curved Array Probe – 5.5MHz – 128 elts
CLA 5.5/R10/128-SiX
-
Center Frequency 5.5
-
Number elements 128
-
Pitch 0.198
-
Radius curvature 10.7
-
Transverse aperture 5
-
Focal Depth 33
Endocavity Curved Array Probe – 7.5MHz – 192 elts
CLA 7.5/R8.8/192
-
Center Frequency 7.5
-
Number elements 192
-
Pitch 0.144
-
Radius curvature 8.8
-
Transverse aperture 6
-
Focal Depth 35

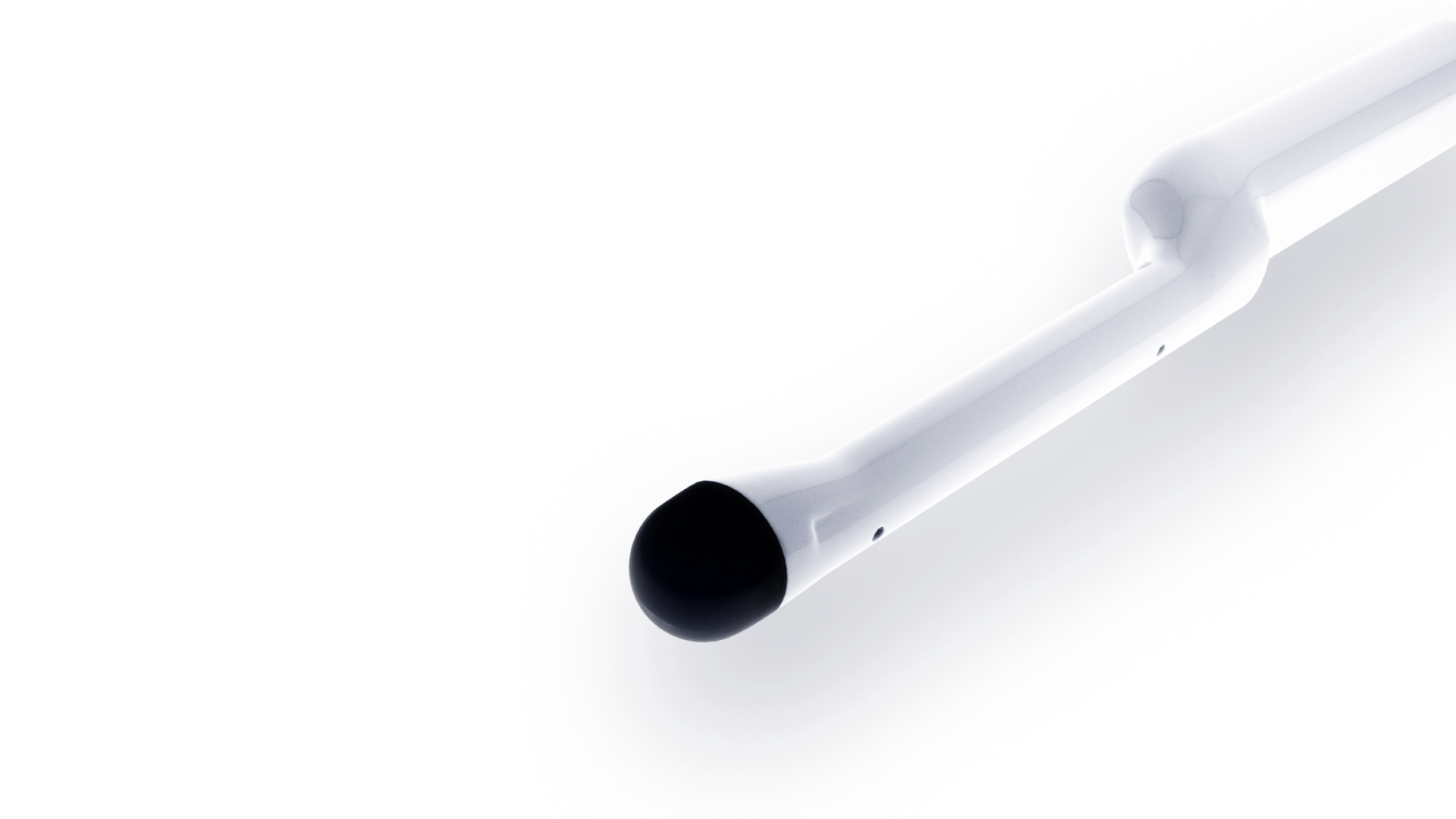

Endocavity Curved Array 3D Wobble – 6.5MHz – 192 elts
CLA 6.5/R10/192-4D
-
Center Frequency 6.5
-
Number elements 192
-
Pitch 0.133
-
Radius curvature 10
-
Transverse aperture 6.5
-
Focal Depth 30

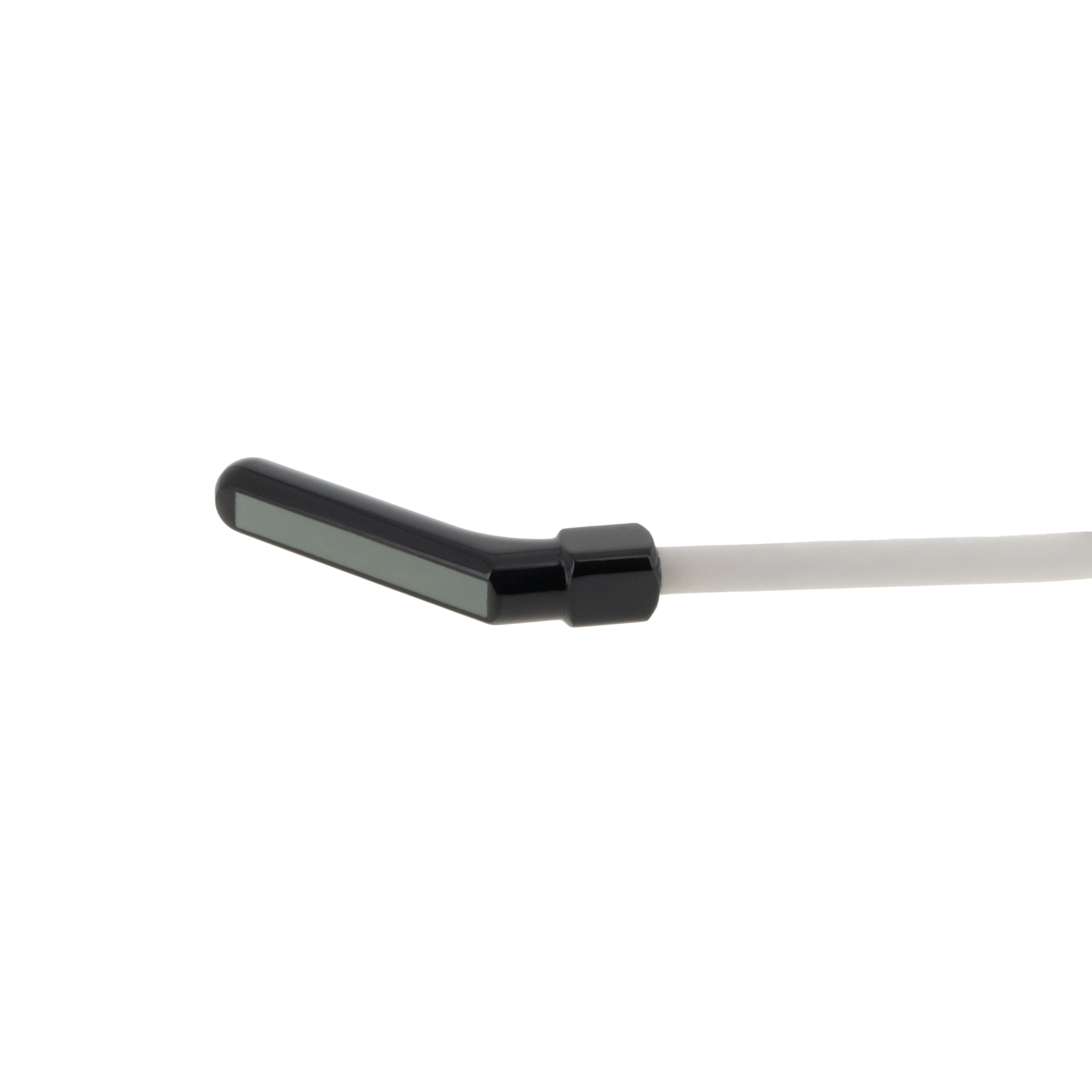

Intraoperative Linear Array – 7.5MHz – 128 elts
LA 7.5/128-IO- Housing I
-
Center Frequency 7.5
-
Number elements 128
-
Pitch 0.3
-
Radius curvature N/A
-
Transverse aperture 4
-
Focal Depth 20
Intraoperative Linear Array – 7.5MHz – 128 elts
LA 7.5/128-IO-Housing I@45°
-
Center Frequency 7.5
-
Number elements 128
-
Pitch 0.27
-
Radius curvature N/A
-
Transverse aperture 4
-
Focal Depth 20

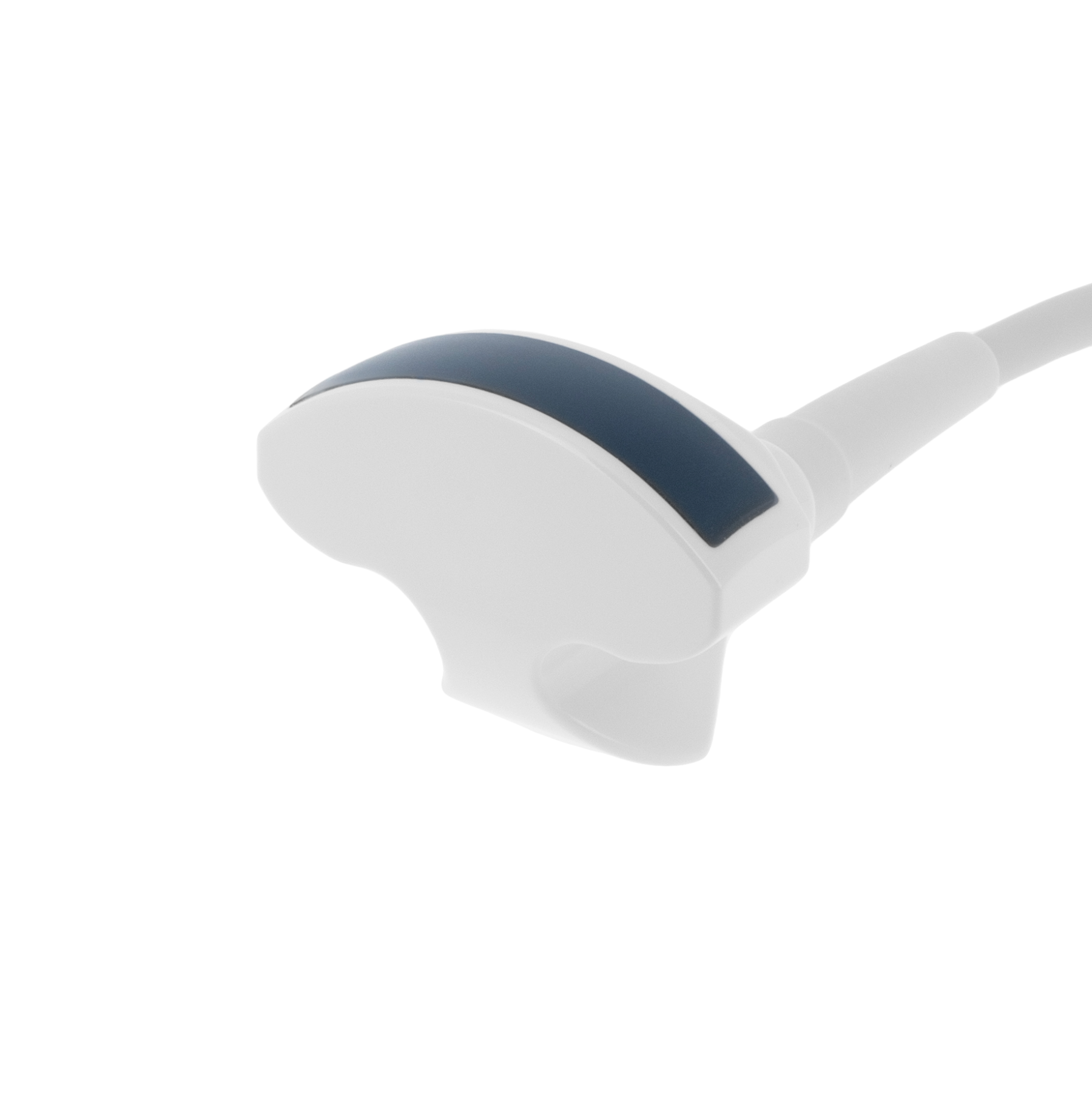

Intraoperative Curved Array – 5.6MHz – 128 elts
CLA 5.6/R32/128-IO
-
Center Frequency 5.6
-
Number elements 128
-
Pitch 0.3
-
Radius curvature 32
-
Transverse aperture 8
-
Focal Depth 40

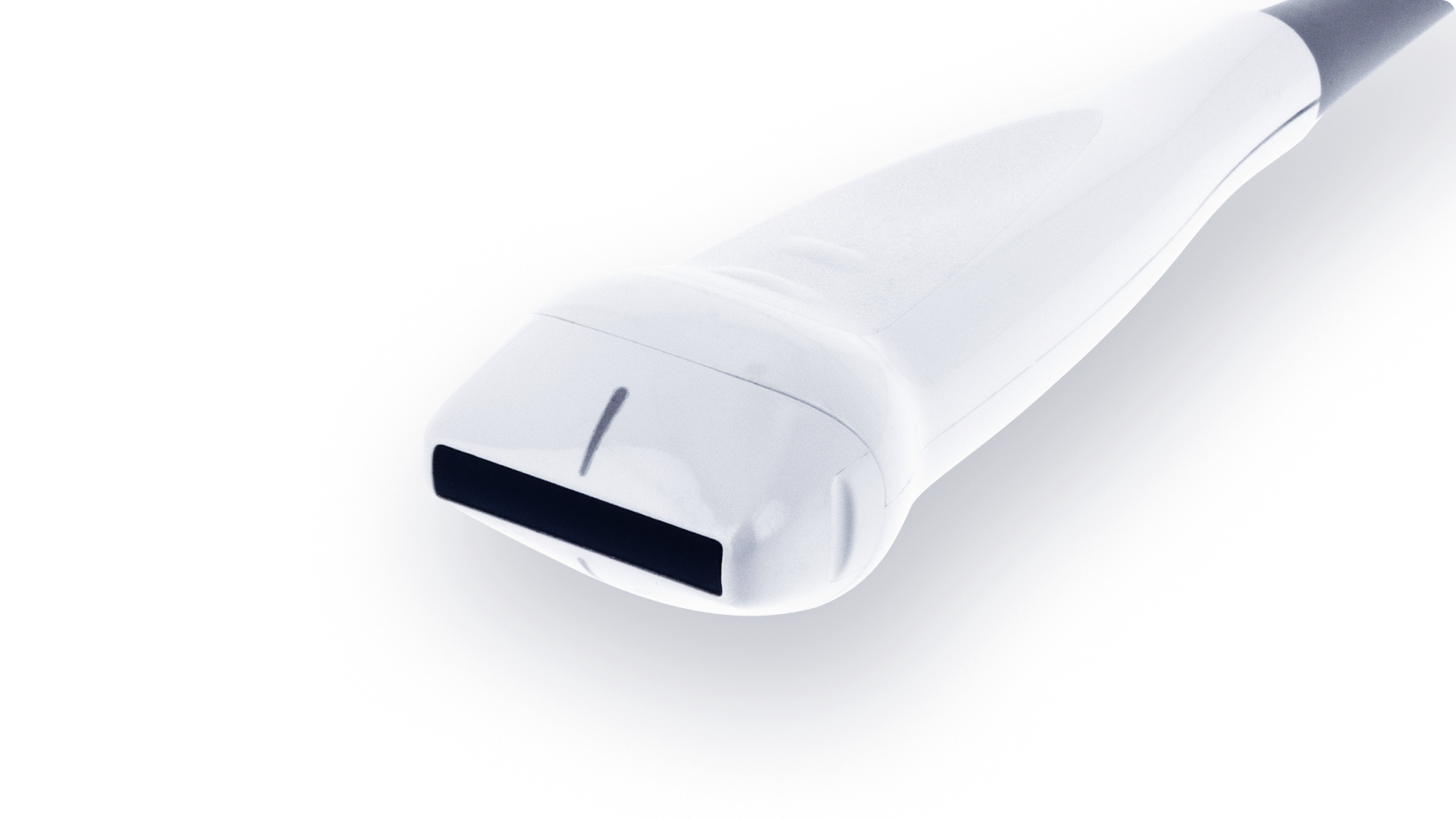

HF Linear Array – 15.0MHz – 192 elts
LA 15.0/192
-
Center Frequency 15.0
-
Number elements 192
-
Pitch 0.13
-
Radius curvature N/A
-
Transverse aperture 3.25
-
Focal Depth 25
HF Linear Array – 18.0MHz – 128 elts
LA 18.0/128-SiX
-
Center Frequency 18.0
-
Number elements 128
-
Pitch 0.1
-
Radius curvature N/A
-
Transverse aperture 3
-
Focal Depth 20

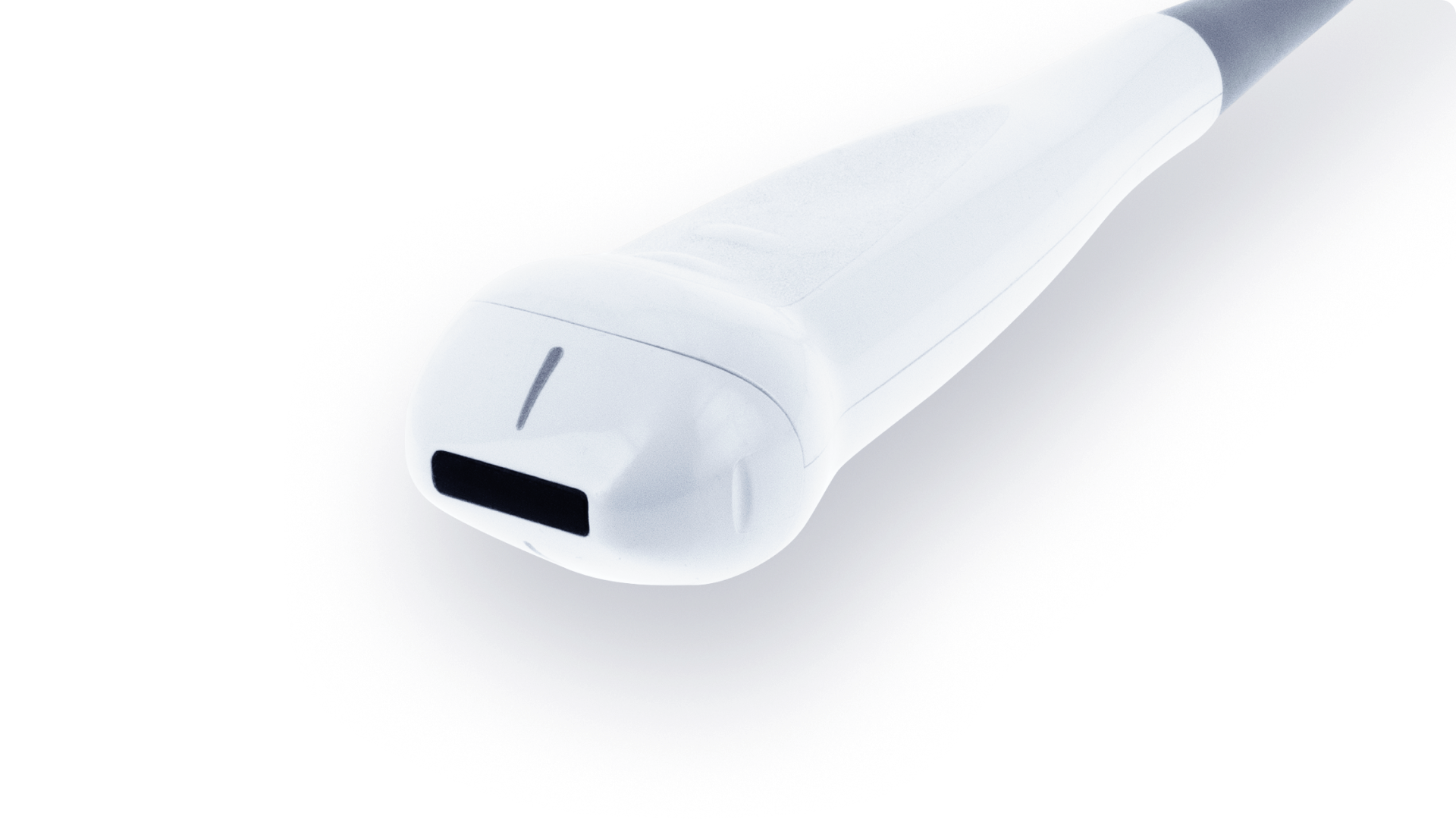

HF Linear Array – 15.0MHz – 128 elts
LA 15.0/128
-
Center Frequency 15.0
-
Number elements 128
-
Pitch 0.1
-
Radius curvature N/A
-
Transverse aperture 1.5
-
Focal Depth 6
Endocavity Curved Array Probe – 5.5MHz – 128 elts
CLA 5.5/R10/128-SiX
-
Center Frequency 5.5
-
Number elements 128
-
Pitch 0.198
-
Radius curvature 10.7
-
Transverse aperture 5
-
Focal Depth 33
Endocavity Curved Array Probe – 7.5MHz – 192 elts
CLA 7.5/R8.8/192
-
Center Frequency 7.5
-
Number elements 192
-
Pitch 0.144
-
Radius curvature 8.8
-
Transverse aperture 6
-
Focal Depth 35
Endocavity Curved Array 3D Wobble – 6.5MHz – 192 elts
CLA 6.5/R10/192-4D
-
Center Frequency 6.5
-
Number elements 192
-
Pitch 0.133
-
Radius curvature 10
-
Transverse aperture 6.5
-
Focal Depth 30

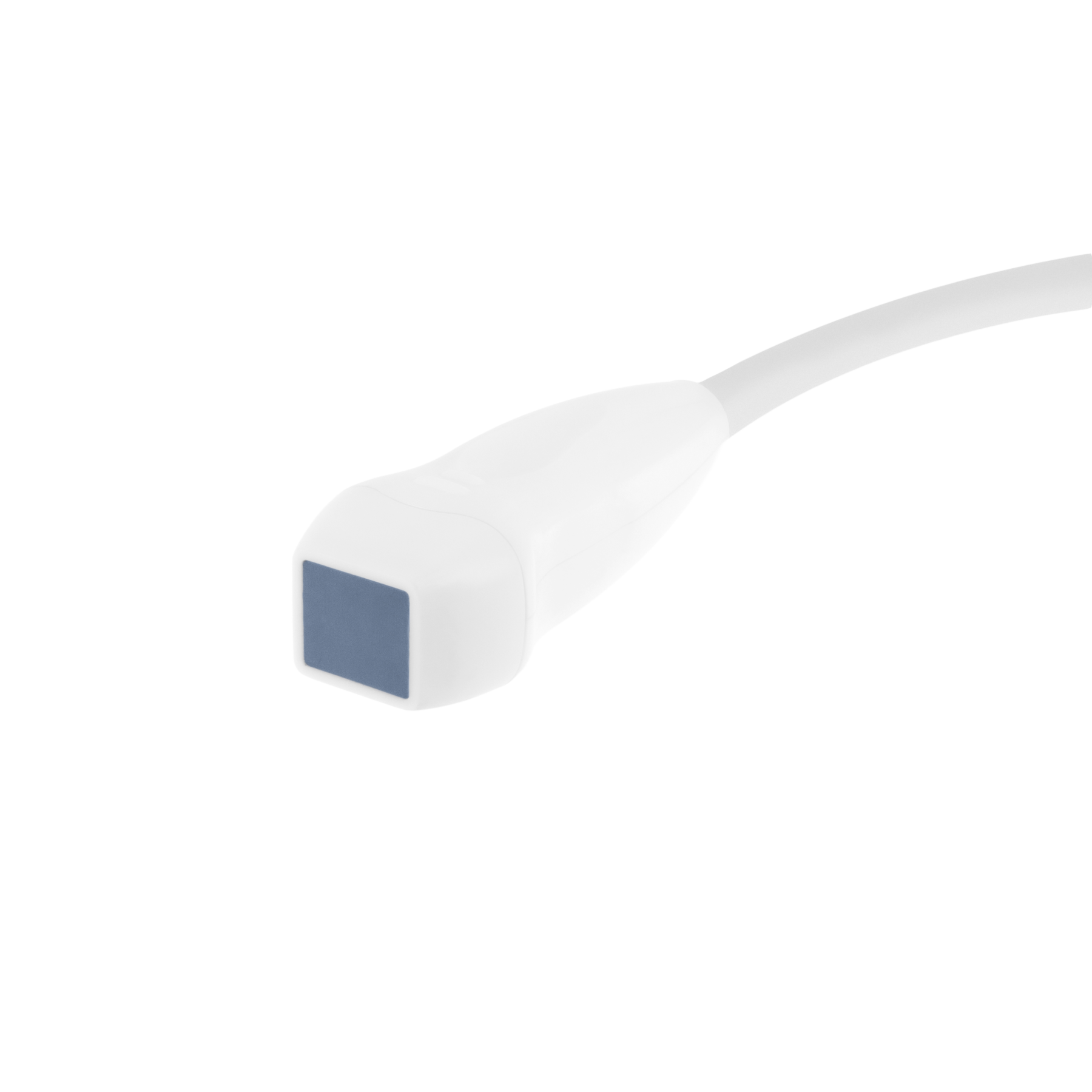

Matrix Array – 2.0MHz – 1024 elts
MAT 2.0/32x32
-
Center Frequency 2.0
-
Number elements 32x32
-
Pitch 0.05
-
Radius curvature N/A
-
Transverse aperture 17.0/17.0
-
Focal Depth N/A

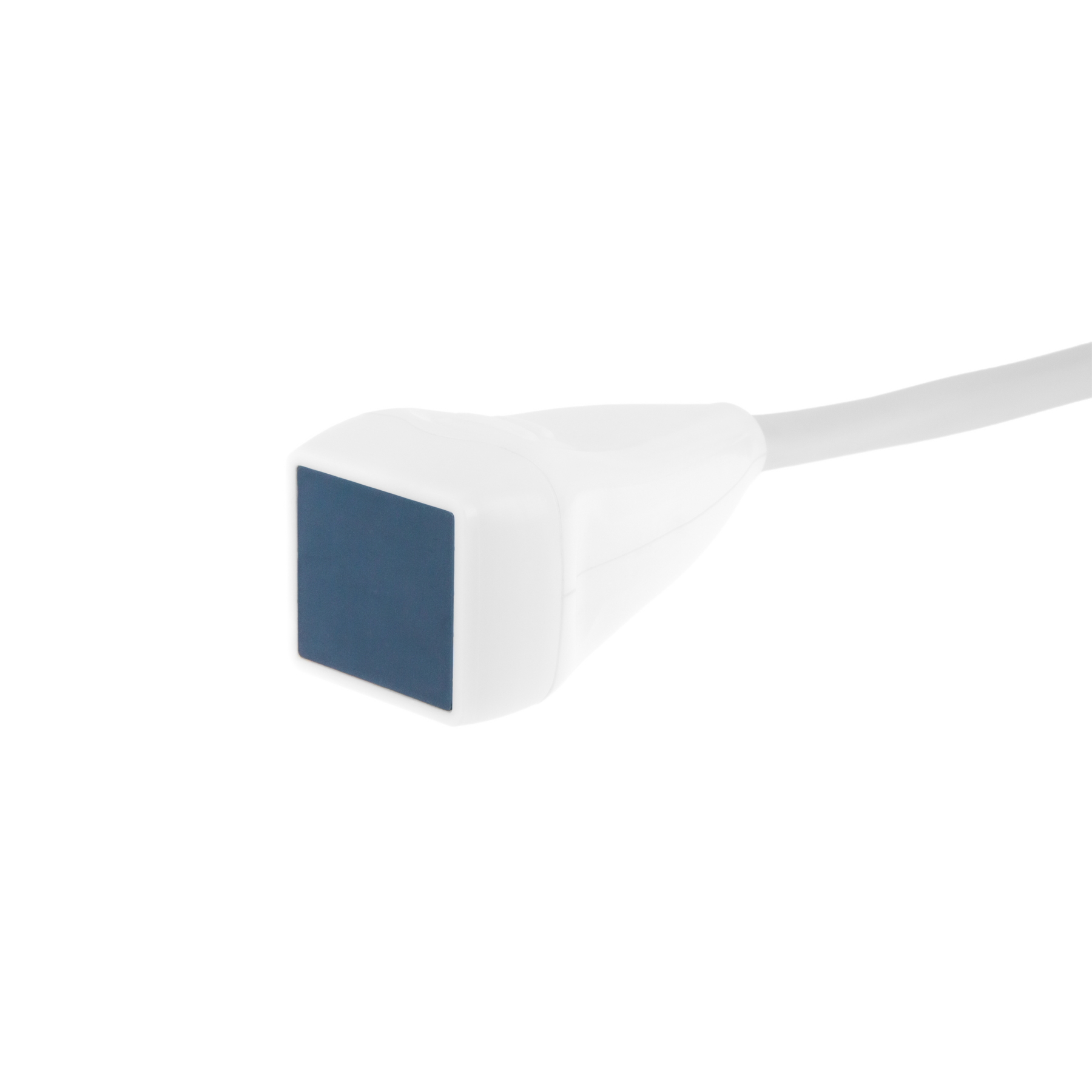

Matrix Array – 1.0MHz – 1024 elts
MAT 1.0/32x32
-
Center Frequency 1.0
-
Number elements 32x32
-
Pitch 1x1
-
Radius curvature N/A
-
Transverse aperture 32.0x32.0
-
Focal Depth N/A

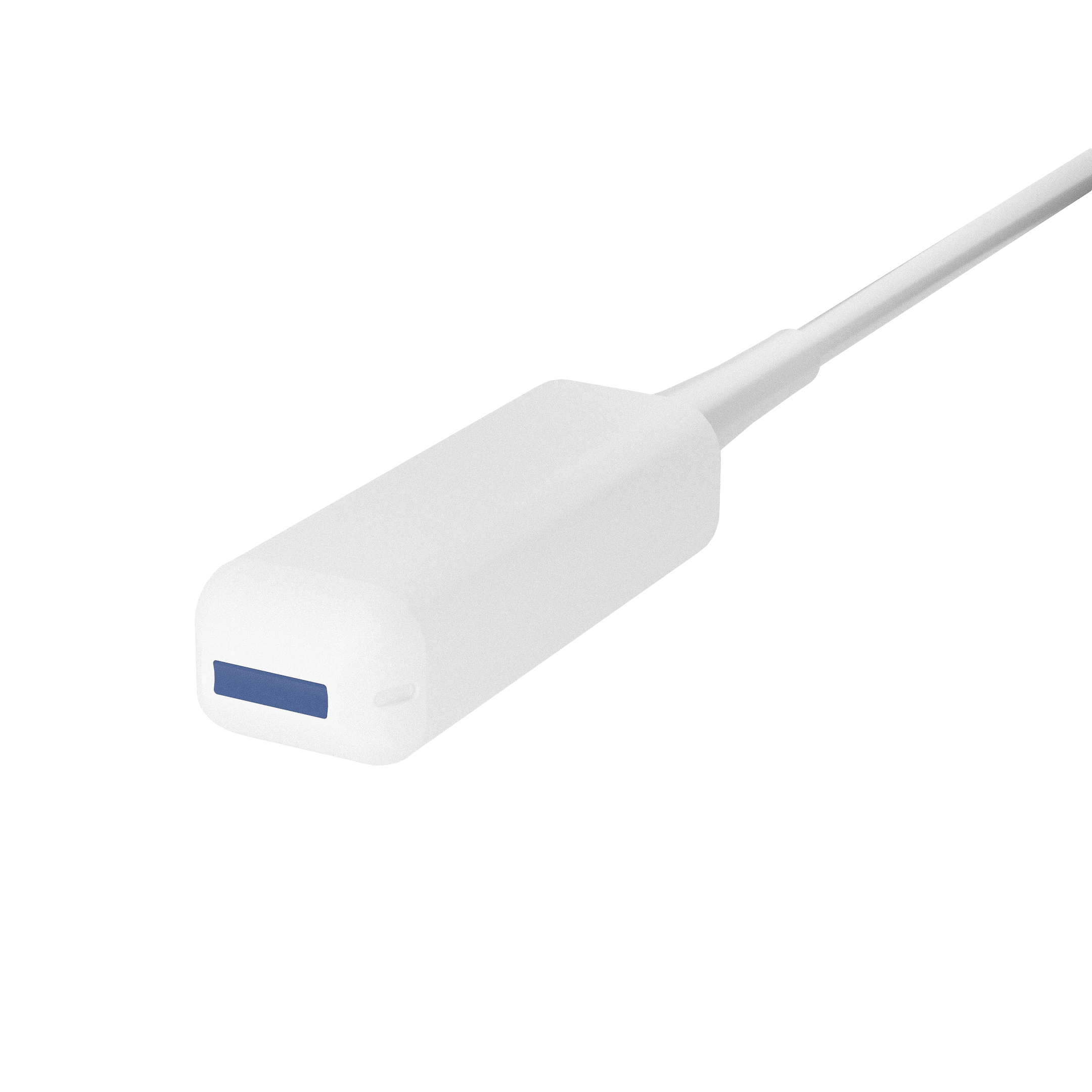

HF Linear Array – 40.0MHz – 256 elts
LA 40.0/256-SiX
-
Center Frequency 40.0
-
Number elements 256
-
Pitch 0.05
-
Radius curvature N/A
-
Transverse aperture 2
-
Focal Depth 6
Endocavity Curved Array Probe – 5.5MHz – 128 elts
CLA 5.5/R10/128-SiX
-
Center Frequency 5.5
-
Number elements 128
-
Pitch 0.198
-
Radius curvature 10.7
-
Transverse aperture 5
-
Focal Depth 33

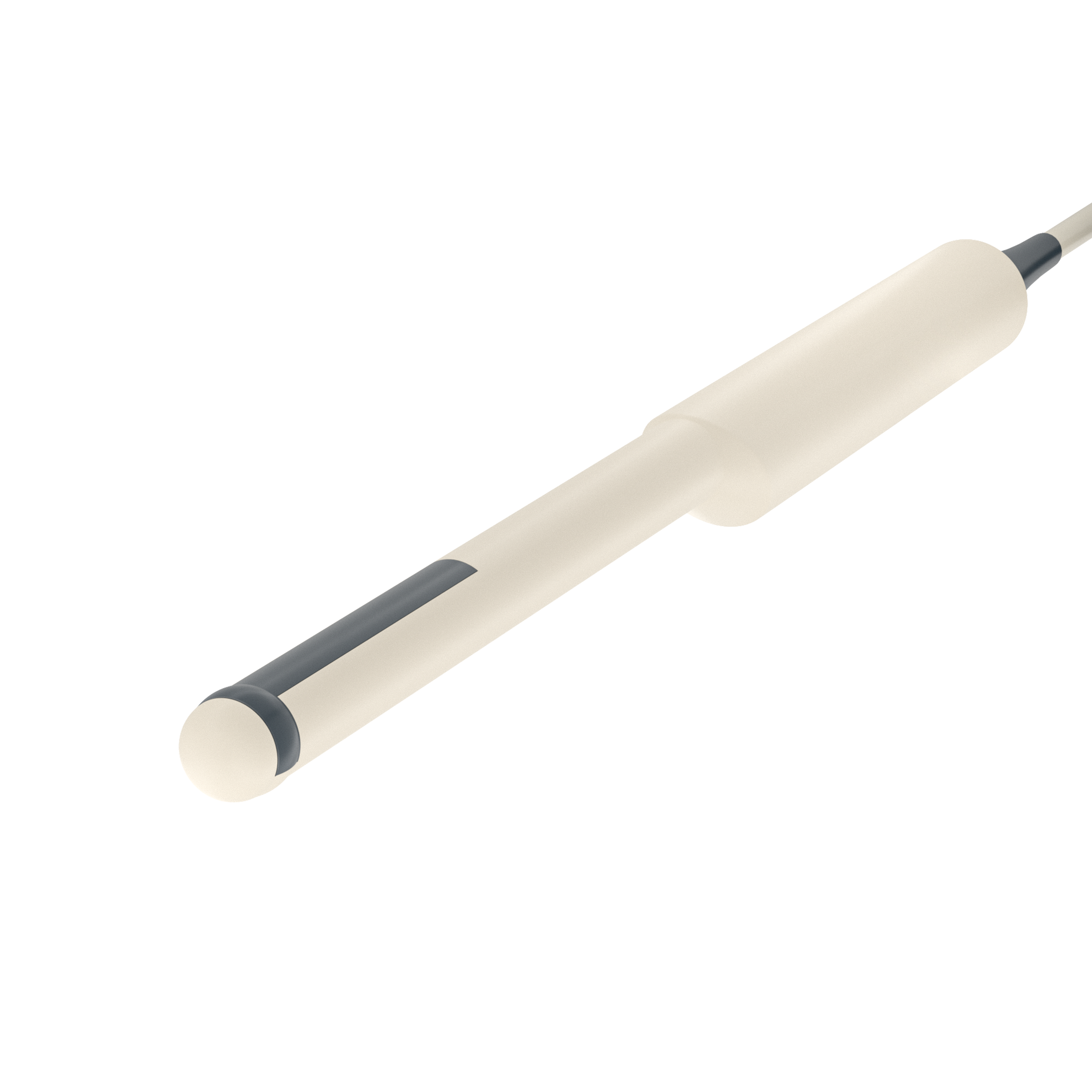

Biplane Probe – CLA 7.0MHz & LA 7.0 MHz – 192 elts
CLA 7.0/R10/192 & LA 7.0/192-BIP
-
Center Frequency 7.0
-
Number elements 192
-
Pitch 0.180.37
-
Radius curvature 10N/A
-
Transverse aperture 4.25
-
Focal Depth 20
Endocavity Curved Array Probe – 7.5MHz – 192 elts
CLA 7.5/R8.8/192
-
Center Frequency 7.5
-
Number elements 192
-
Pitch 0.144
-
Radius curvature 8.8
-
Transverse aperture 6
-
Focal Depth 35

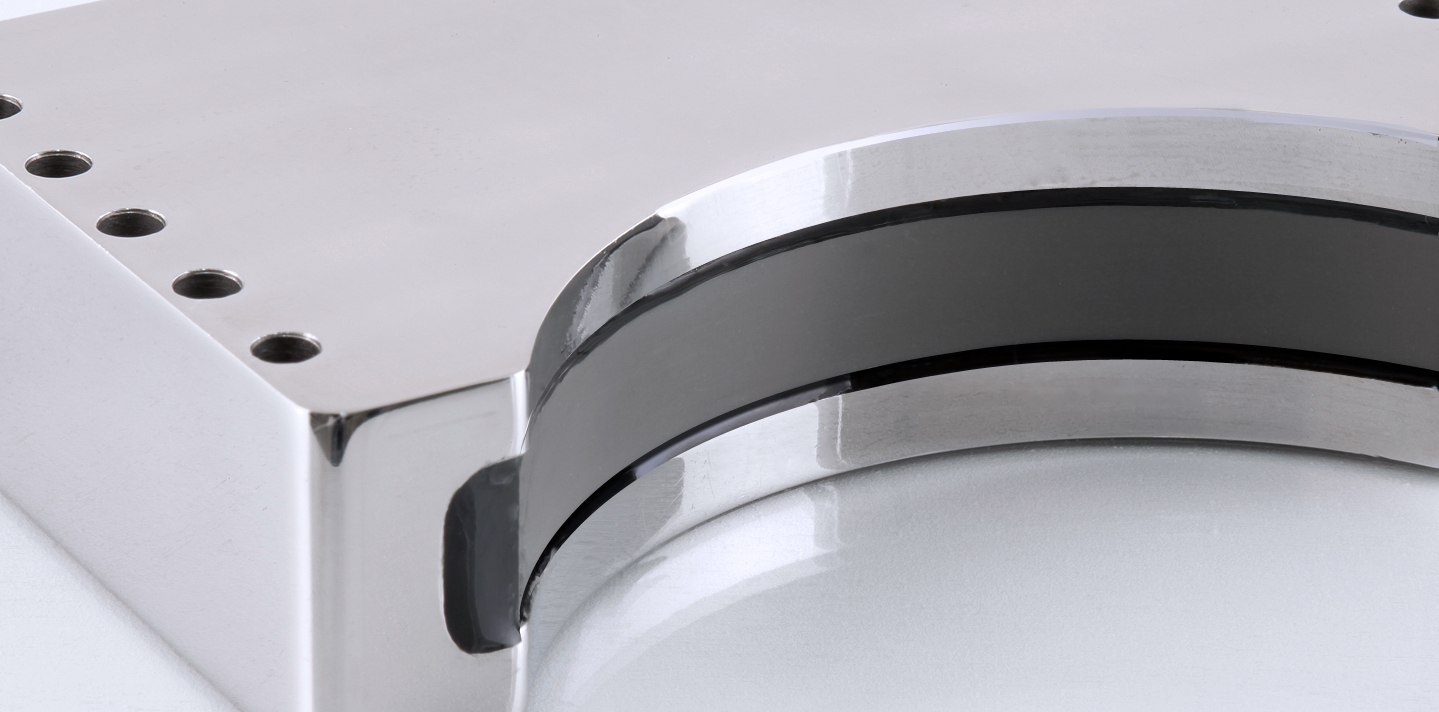

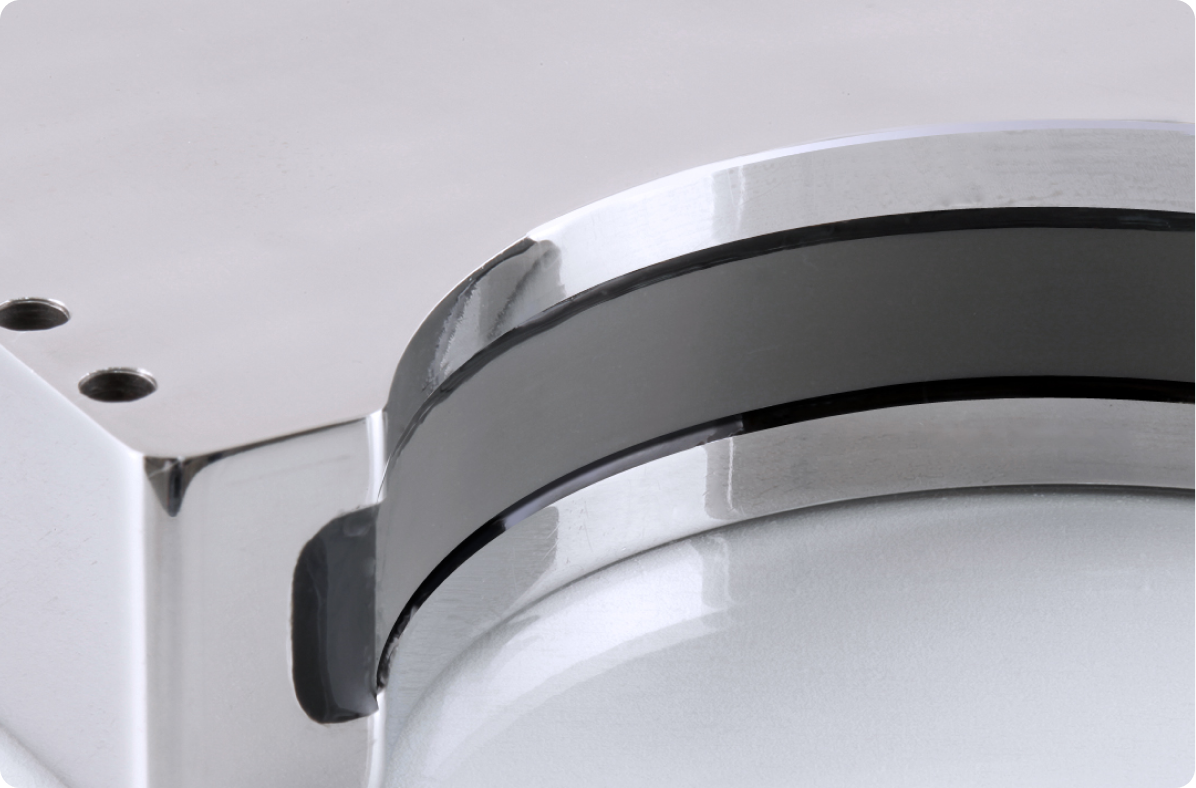

NDT Products
For industrial applications, our advanced array designs ensure reliable flaw detection and testing in harsh environments.
At Vermon, versatility is at the heart of our innovation.
Advancing Ultrasound Technologies
From Piezocomposite to Single Crystal and CMUT, our main transducer technologies lead the way. Our extensive portfolio allows us to tailor solutions that align perfectly with your performance, application, and business requirements.
ESG Certifications and Sustainability Commitment
Innovating for a Healthier Future!
As proud signatories of the United Nations Global Compact, we hold ourselves accountable for our actions. At Vermon, we believe that business success and sustainability should go hand in hand. That’s why we’ve developed a comprehensive sustainable plan : WE CARE.
Careeers
Join Our Team of Innovators !
Vermon is at the forefront of the industry, producing an impressive 150,000 arrays per year. This level of productivity would not be possible without our passionate team. Joining our ranks means becoming part of a community of professionals who share a common vision to push the boundaries of what’s possible.
