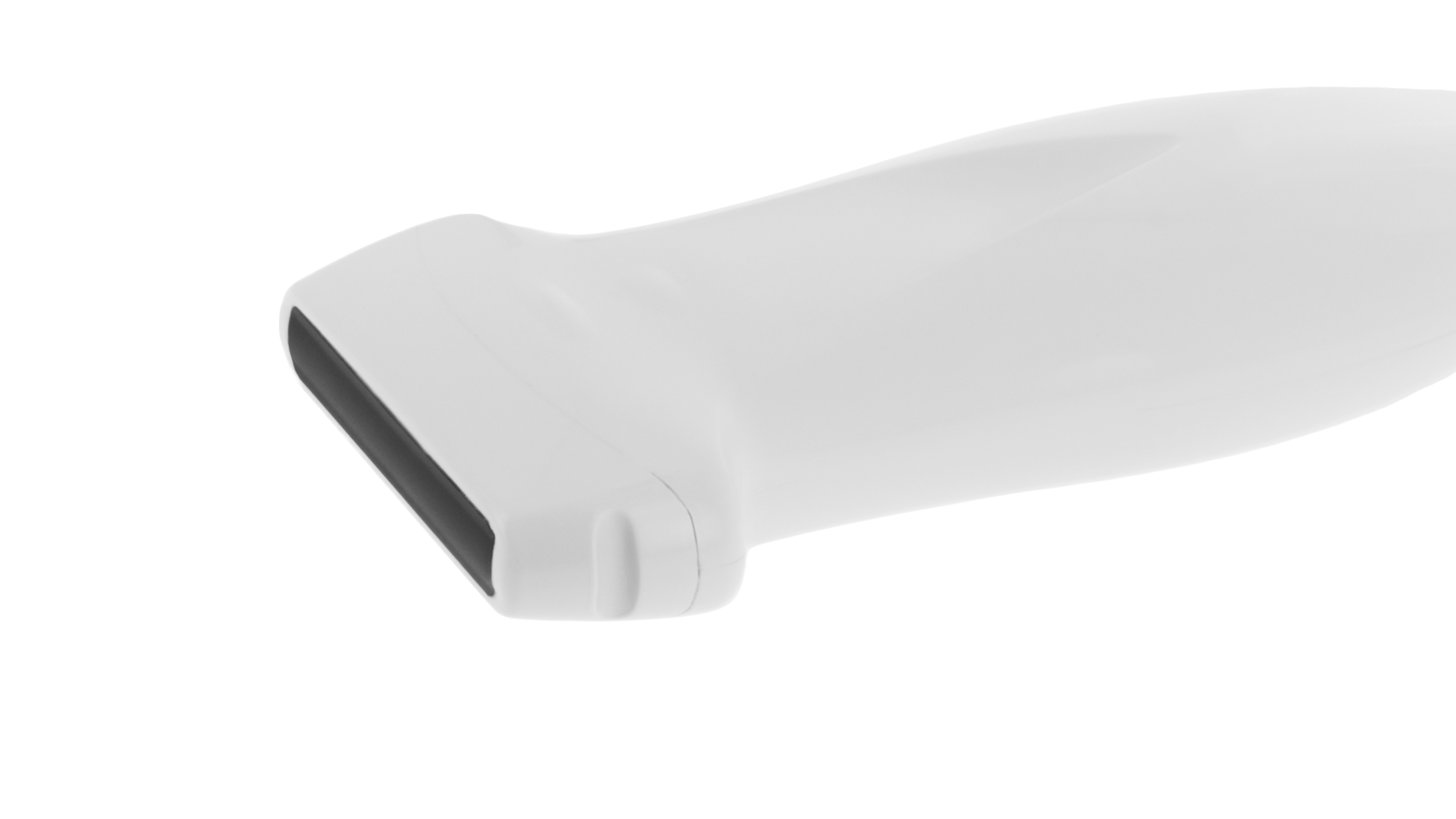

Linear Array 8.0MHz - 192 elts
SKU : LA 8.0/192
-
Center Frequency 8.0
-
Number elements 192
-
Pitch 0.286
-
Radius curvature N/A
-
Transverse aperture 4
-
Focal Depth 20
This 8.0 MHz linear array probe is dedicated for Vascular, Radiology and MSK imaging. The significantly extended footprint provides a broader field of view, making it ideal for examining superficial structures, the vascular system, the thyroid, breasts and muscles. Its piezocomposite technology with additional in-probe electronics, allowing de reduction of receiving channels from 192 to 128, are perfectly suited for mid-range, shared service and POC systems providing high performance image quality and good Doppler sensitivity with high contrast and resolution at shallow and medium depth.
Application
- Superficial
Specialities
- Cardio-vascular
- MSK
- Radiology
Targets
-
Artery & Veins
-
Breast
-
Carotid
-
Muscles
-
Thyroid
Technology
- Piezocomposite
Available in
- Probe
- Transducer
